CW Dash29 – 155 mm in the rear, 29er wheels and all Made in Germany!
Build your own dream Dash29.



Our 29 ″ Enduro is designed, constructed and built here in the heart of Germany and of course also welded at headquarters. From cutting to stitching, welding and heat treatment, one of our frames can be brought to life in a 4 week turn around time. The heart of the Dash, the linkage, is hidden in the CNC's BB shell housing and cannot be seen at first glance. Thanks to the low shock position, the Dash impresses with an excellent low center of gravity and is therefore well placed on the trail in every situation.

The 79 ° seat angle literally pushes you uphill, so you get to the next trail relaxed and can really put down the speed for the descend. The front around the head tube has risen a bit so that you don't run on a collision course with the popular and yet very massive suspension forks. And if you want, you can also use a potent 170 mm fork in the front. In the Dash29, our rear end generates a whopping 155 mm of travel with a shock size of 230 x 60 mm and is therefore armed for some serious action.



When ordering through EightyOneSpices, we can offer a discount on any items in stock from our range



Included items:

  • 1x CW axle
  • 2x CW derailleur hanger
  • 5x frame plugs
  • 1x Chain stay protection
  • shock is NOT included



Note: we can supply the Formula MOD coil shock which we have tested in this frame seperately.



Available in radiant raw and 8 standard colours. Special colour variants are available upon request for an upcharge of $300.-



RADIANT RAW: take note, this really is raw. It is not a brushed or polished or clear coated raw. It is as the frame is after heat treatment and final BB and head tube facing. it will show all the imperfections of raw tubing and different shades of the raw aluminium material. This is really for those that love that RAW and industrial look. But also ideal if you want to brush or polish it your self.



8 standard colours:

  - Yawning yellow

  - Peaceful Petrol

  - Racing Blue

  - Vivacious Violet

  - Beaming Black

  - Gritty Grey

  - Obese Orange

  - Grassfresh Green



Note on stock and delivery times:

to start off with we will hold stock of raw frames in size L and XL. If demand grows to a point where it warranty keeping size M frames, we will do so. For any frame not in stock take note for delivery times: Crossworx lay out their production plan on the last day of the month for all ordered frames in that month and produce the ordered frames in the following month so frames can be ready at the end of that month for shipping. Shipping from Germany is approx 4 weeks. So if we order a frame at end of the month, expect turn around time to be just over 8 weeks.

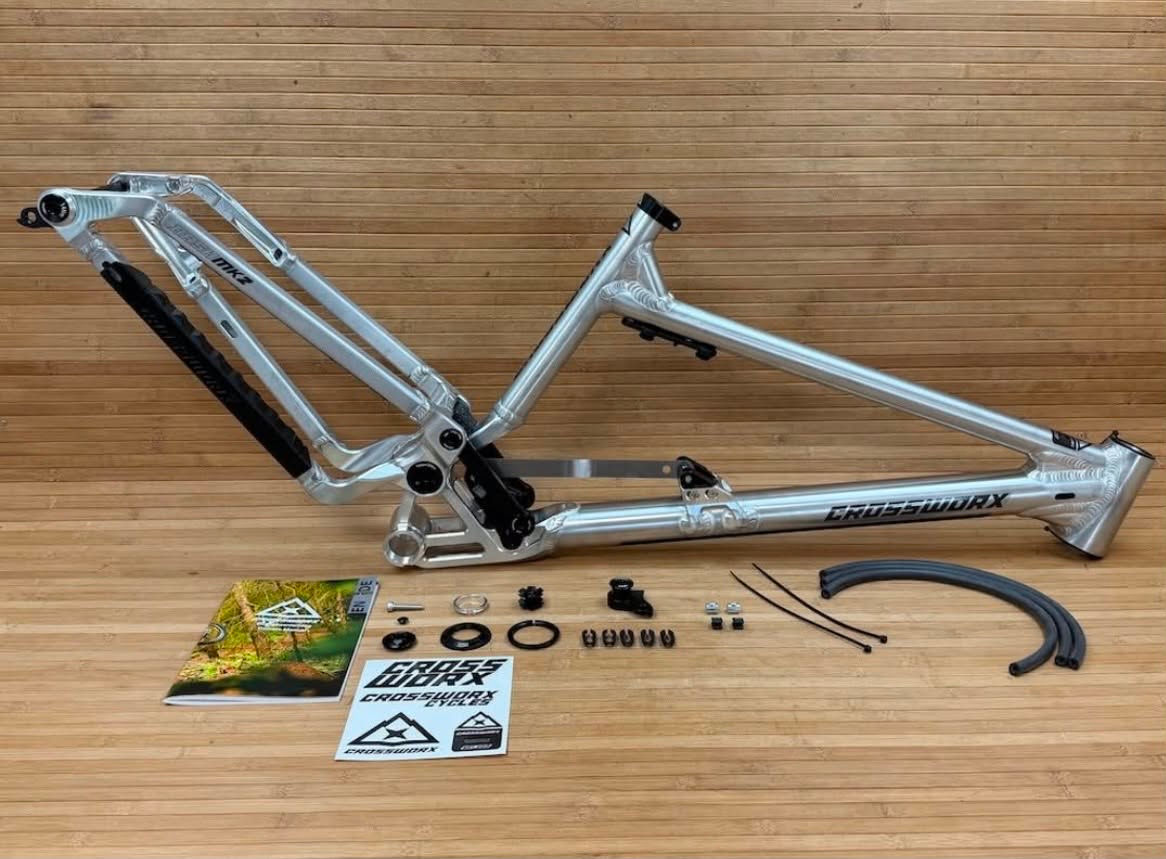

CROSSWORX Dash 29 Frameset

$4,399.00Price
  • Size S: Not in stock

    Size M: Contact us

    Size L:   In stock

    Size XL: In stock

    Any frame not in stock: 8 - 12 weeks (sometimes shorter, contact us!)



  • Material: Alloy 7020

    Suspension front/back: 170mm or 160mm / 155mm

    Shock length: 230x60 / 22.2x8mm hardware

    Seat post diameter: 30.9mm

    Seat tube clamp: 34.9mm

    Headset diameter: ZS 44/56

    Bottom bracket: BSA 73mm

    Disk brake standard: PM 180

    Hub width rear: 148x12mm

    Bottle cage

    ISCG05

    Dropper Post Ready

    max. tire scope: 29" x 2.5"

    Weight (raw, size M): 3.9kg
