Tune has developed this exclusive aluminium wheel that maintains a light weight despite an inner rim width of 28mm. The grip and aggressivity in the curves are unbeatable in this range. The wheel is equipped with our best-selling KillHill hub. The hub is CNC machined in our factory from aerospace grade aluminium, thus demonstrating increased fatigue strength and low weight. The anodising ensures a great look and prevents corrosion, even under the toughest circumstances. Assembled and adjusted by hand in Buggingen, Germany, the Race 28 29” boasts the highest quality standards—guaranteed! The geometry has been optimised for a balanced, stiff wheel. The rim is made with high performance aluminium alloy, which confers competitive weight, great ride stability, and the best durability on the market. Also, the rim is asymmetric for a more balanced wheel build. The shot peen finish increases fatigue life and durability. With an inner width of 28mm, the rim provides improved tyre support, which allows lower pressure, less rolling resistance, and better grip on rough tracks. It is ideal for modern XC assembly. The wheel is fitted with Sapim CX-Ray spokes, which have extremely high fatigue test results and are very light. Typical for Tune, this wheel is available in seven colours for the hub, the nipples, and the decals to make your bike as unique as you are. With the Race 28 29”, you take a big step into the future!
Black is our standard colour - however, colours , colours , colours … not only in the hub and nipples you have a free choice – even the rim decals are available in all Tune- colours! It simply does not get any more individual … These are a bit of wait - 6-8 weeks from order date.

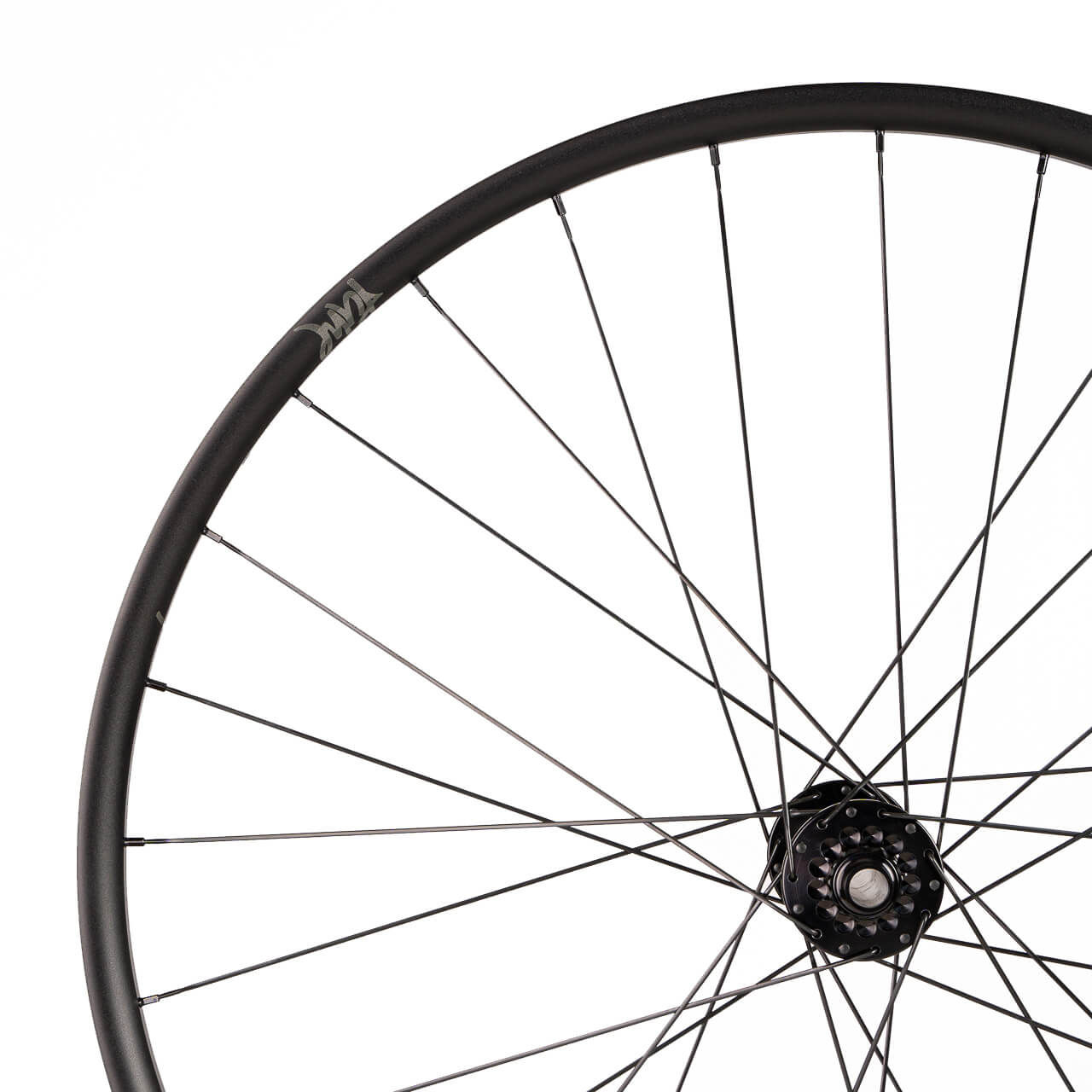

TUNE Race28 29"
Race 28 29" front wheel
weight from: 700g
hub type: KillHill 28 holes with Aluminium endcaps and Standard Bearings
spokes: SAPIM CX-Ray Black Aero Inox
max. spoke tension 1100N
max. rider weight: 100kg
max.system weight: 115kg
rim inner width: 28mm
rim outer width: 32.2mm
rim height: 17.5mm
rim standard: 29"
tubeless ready: yes
recommended width tubeless tape: 28mm
recommended length tubeless valve: 35mm
tyres and max.pressure: 2,2"/2,9bar - 2,25"/2,75bar - 2,35"/2,5bar
nipples: SAPIM Anodized, Polyax, Secure Lock
brake interface: 6 Bolt
colours: for hubs, nipples and Tune decals, available in all Tune anodised coloursRace 28 29" rear wheel
weight from: 798g hub type: ClimbHill 28 holes with Aluminium Endcaps and Standard Bearings spokes: SAPIM CX-Ray Black Aero Inox
max. spoke tension: 1100N
max. rider weight: 100kg
max.system weight: 115kg
rim inner width: 28mm
rim outer width: 32,2mm
rim height: 17,5mm
rim standard: 29"
tubeless ready: yes
recommended width tubeless tape: 30mm
recommended length tubeless valve: 35mm
tyres and max.pressure: 2,2"/2,9bar - 2,25"/2,75bar - 2,35"/2,5bar
nipples: SAPIM Anodized, Polyax, Secure Lock
brake interface: 6 Bolt
colours: for hubs, nipples and Tune decals, available in all Tune anodised colours
scope of delivery: wheel and packaging
For Tubeless Tires only (with or without inner tube)
Remove the 1.8mm spacer on your freehub to switch from HG10 to HG11 and from XD to XDR.
Remove the two spacers (1.8mm and 0.6mm) on your freehub to switch from HG10 to HG12.
for more information please refer to the user manual - https://helpdesk.tune.wiki/l/en
*Center Lock rotor mounting system licensed by Shimano
*XD-Compatible licensed by SRAM
*XDR Compatible licensed by SRAM
*microspline system licensed by Shimano
